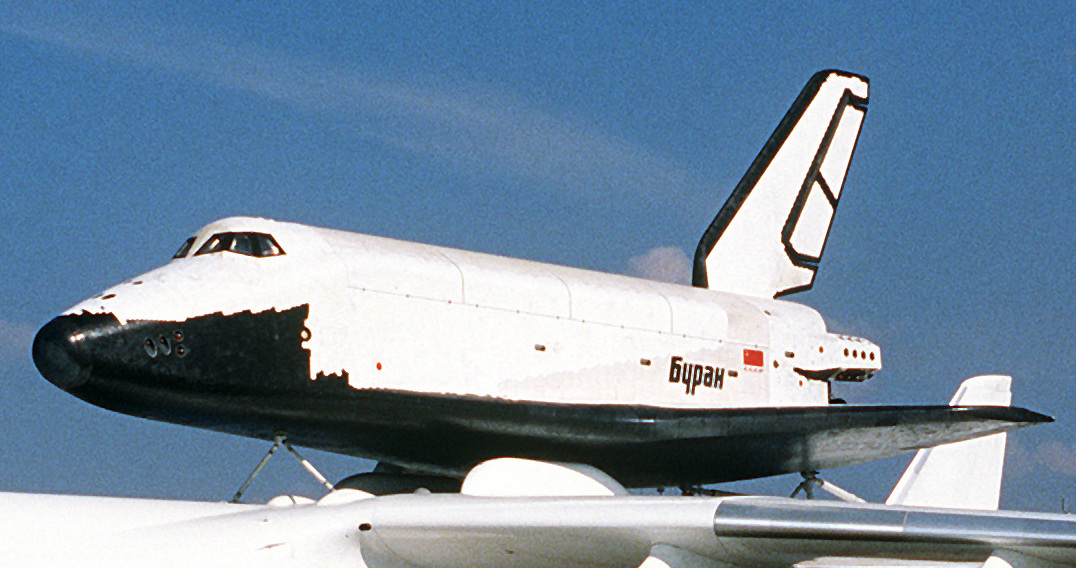

Buran Reusable Orbiter

Buran was the Soviet reusable winged orbital-shuttle vehicle developed as the spacecraft element of the Energia-Buran system. Its integrated motor unit comprised two 17Д12 orbital-operation engines rated at 90 kN each, 38 control engines rated at 4 kN each, and eight precision-orientation engines rated at 200 N each, according to technical-history documentation. The unit supported separation from Energia, movement to a working orbit, stabilization and orientation, orbital operations, rendezvous and docking, and descent control. The documentation identifies liquid oxygen and a synthetic noncryogenic hydrocarbon for main propulsion and gas oxygen for precision steering. A technical table adapted from Semyonov (ed. 1995) lists 36.37 m overall length, 16.35 m ground height, 23.92 m wingspan, and a 105 t maximum launch mass; these are design-data values, not a universal operational claim. The only orbital Buran vehicle flew uncrewed for two orbits and landed automatically in 1988; the programme ended before a crewed flight.

Buran Reusable Orbiter
Follow this vehicle family

Future launches and major activity directly linked to this vehicle family.

Identity

Aliases
Buran orbiterБуран11F35 Buran
Family Name
Buran
Full Name
Buran Reusable Orbiter
Status
retired
Type
spaceplane

Details

Description
Buran was the Soviet reusable winged orbital-shuttle vehicle developed as the spacecraft element of the Energia-Buran system. Its integrated motor unit comprised two 17Д12 orbital-operation engines rated at 90 kN each, 38 control engines rated at 4 kN each, and eight precision-orientation engines rated at 200 N each, according to technical-history documentation. The unit supported separation from Energia, movement to a working orbit, stabilization and orientation, orbital operations, rendezvous and docking, and descent control. The documentation identifies liquid oxygen and a synthetic noncryogenic hydrocarbon for main propulsion and gas oxygen for precision steering. A technical table adapted from Semyonov (ed. 1995) lists 36.37 m overall length, 16.35 m ground height, 23.92 m wingspan, and a 105 t maximum launch mass; these are design-data values, not a universal operational claim. The only orbital Buran vehicle flew uncrewed for two orbits and landed automatically in 1988; the programme ended before a crewed flight.
Dimensions
Height
…
Length
…
Wingspan
…
First Flight Year
1,988
Last Flight Year
1,988
Propulsion Configurations
  • Entries
    • Count
      1
      Placement
      spacecraft
      Propulsion System
      Role
      main
      Stage
      orbiter
      Variant Notes
      One integrated Buran orbiter motor unit; the source-defined internal composition is 2 orbital-operation engines, 38 control engines, and 8 precision-orientation engines.
    Name
    Buran orbiter motor-unit installation
    Notes
    The Buran orbiter's integrated motor unit comprised two 17Д12 orbital-operation engines, 38 control engines, and eight precision-orientation engines in the technical-history composition. The vehicle relationship uses count 1 for the integrated motor-unit boundary, not for one internal engine; Energia launch-vehicle propulsion remains outside this spacecraft installation.
Spacecraft Specs
Reusability
fully_reusable
