Cassini Saturn Orbiter

The JPL-designed, assembled, and operated Cassini orbiter carried ESA's Huygens probe to Saturn and then conducted a 13-year orbital investigation of Saturn, its rings, atmosphere, magnetosphere, and moons.

Cassini Saturn Orbiter

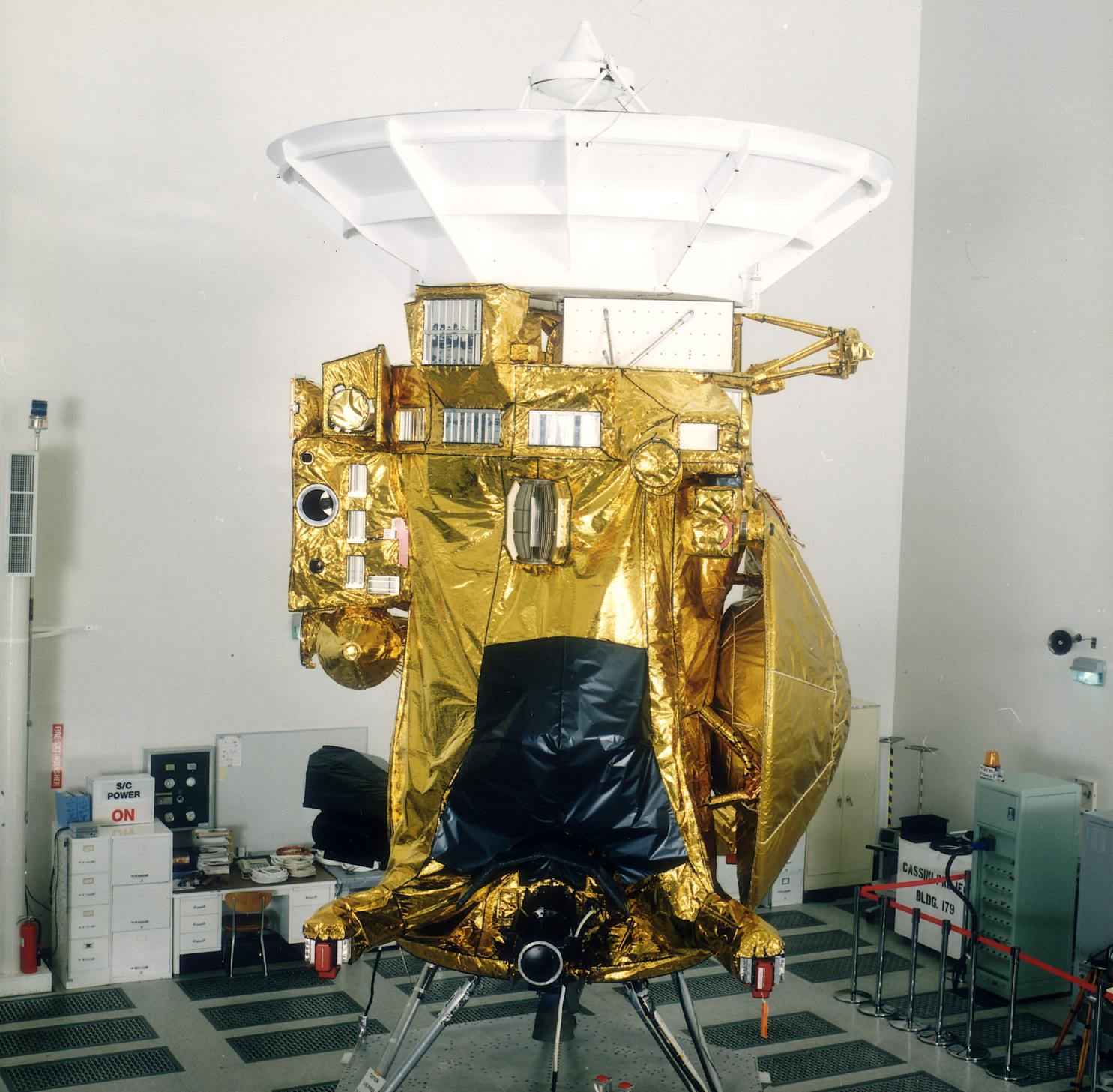

NASA / Jet Propulsion Laboratory · NASA/JPL asset; the exact NASA Photojournal record PIA04603 identifies this byte-matched photograph as NASA’s Cassini spacecraft in a Jet Propulsion Laboratory assembly room and credits NASA/JPL. NASA’s current Images and Media Usage Guidelines generally permit factual, informational, or editorial use with NASA attribution and without implying NASA endorsement. ESA, ASI, and other third-party marks or protected rights visible in the mission hardware, plus commercial, promotional, merchandise, or other protected uses, may require separate clearance; verify before such use. · Source
Follow this vehicle family

Future launches and major activity directly linked to this vehicle family.

Identity

Aliases
Cassini spacecraftCassini orbiter
Family Name
Cassini Orbiter
Full Name
Cassini Saturn Orbiter
Roles
interplanetary_probeorbiter
Status
retired
Type
spacecraft

Details

Description
The JPL-designed, assembled, and operated Cassini orbiter carried ESA's Huygens probe to Saturn and then conducted a 13-year orbital investigation of Saturn, its rings, atmosphere, magnetosphere, and moons.
Dimensions
Height
…
Width
…
First Flight Year
1,997
Last Flight Year
2,017
Manufacturer
Operator
Propulsion Configurations
  • Entries
    • Count
      1
      Placement
      spacecraft
      Propulsion System
      Role
      maneuvering
      Stage
      spacecraft
      Variant Notes
      Integrated Cassini orbiter propulsion subsystem: two redundant bipropellant main engines and sixteen redundant hydrazine thrusters, with prime/backup boundaries preserved; exact component product models are not asserted beyond the source-described R4D prime-engine reference.
    Name
    Cassini Saturn Orbiter integrated propulsion installation
    Notes
    Cassini's installed orbiter propulsion subsystem combines two isolated chemical systems: redundant 445 N-class nitrogen-tetroxide/monomethylhydrazine main propulsion and sixteen redundant approximately 1 N hydrazine attitude-control/small-maneuver thrusters. The relationship records one whole-subsystem installation; the component counts and functional split remain in the propulsion identity and notes.
Spacecraft Specs
Reusability
unknown

Links

Official Url
https://science.nasa.gov/mission/cassini/

Assets & Meta

Creation Time
July 17, 2026 at 02:03:07 UTC
Updated Time
September 8, 2026 at 00:39:16 UTC
Download
