Delta IV

Delta IV was a cryogenic expendable launch-vehicle family developed by Boeing and later produced and operated by United Launch Alliance. Its five configurations completed 45 flights from 2002 through 2024: 29 single-core Medium and Medium+ missions and 16 three-core Heavy missions. The inaugural Heavy demonstration experienced reduced launch performance; every subsequent Delta IV flight completed its mission successfully.

Delta IV

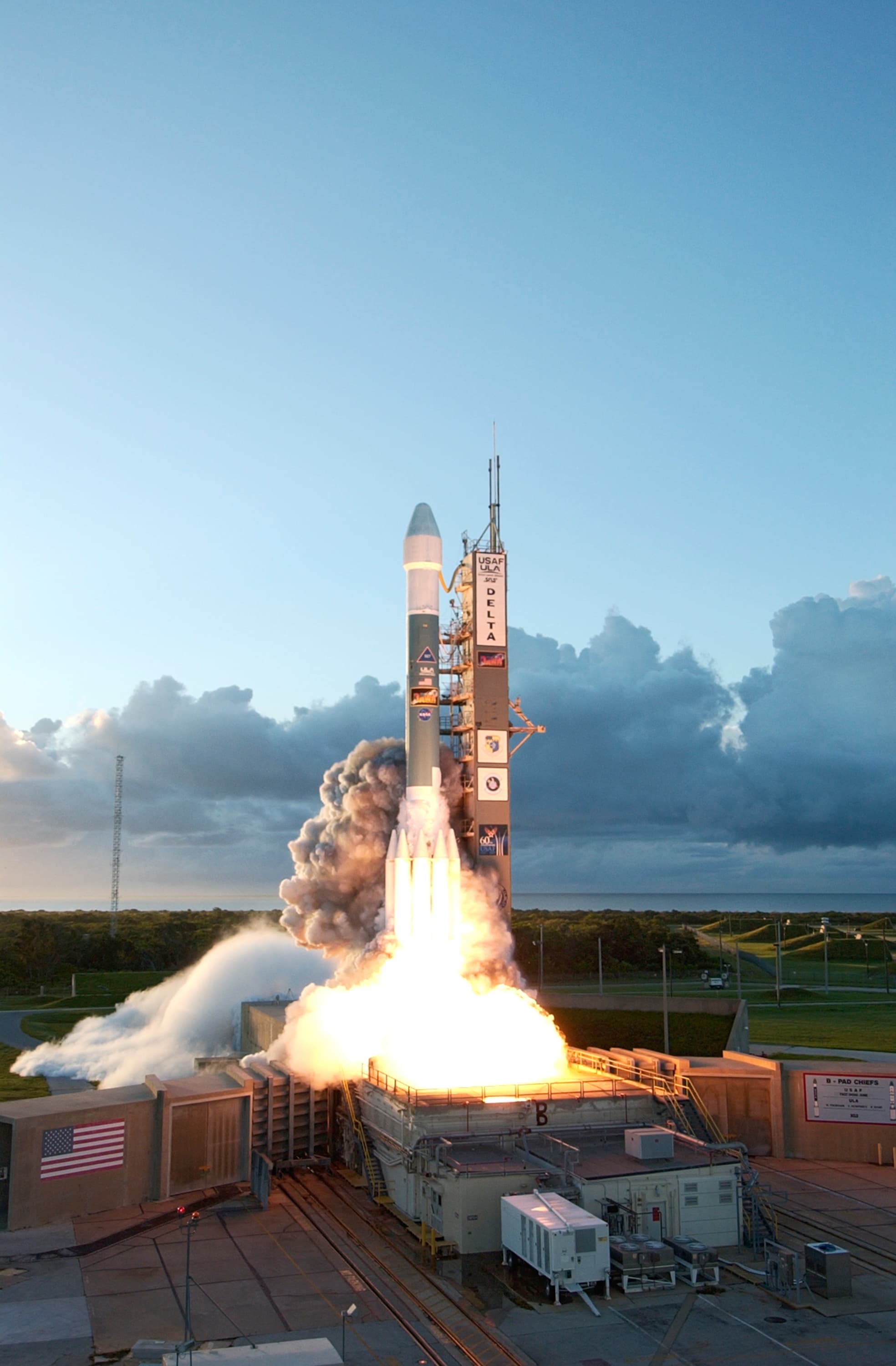

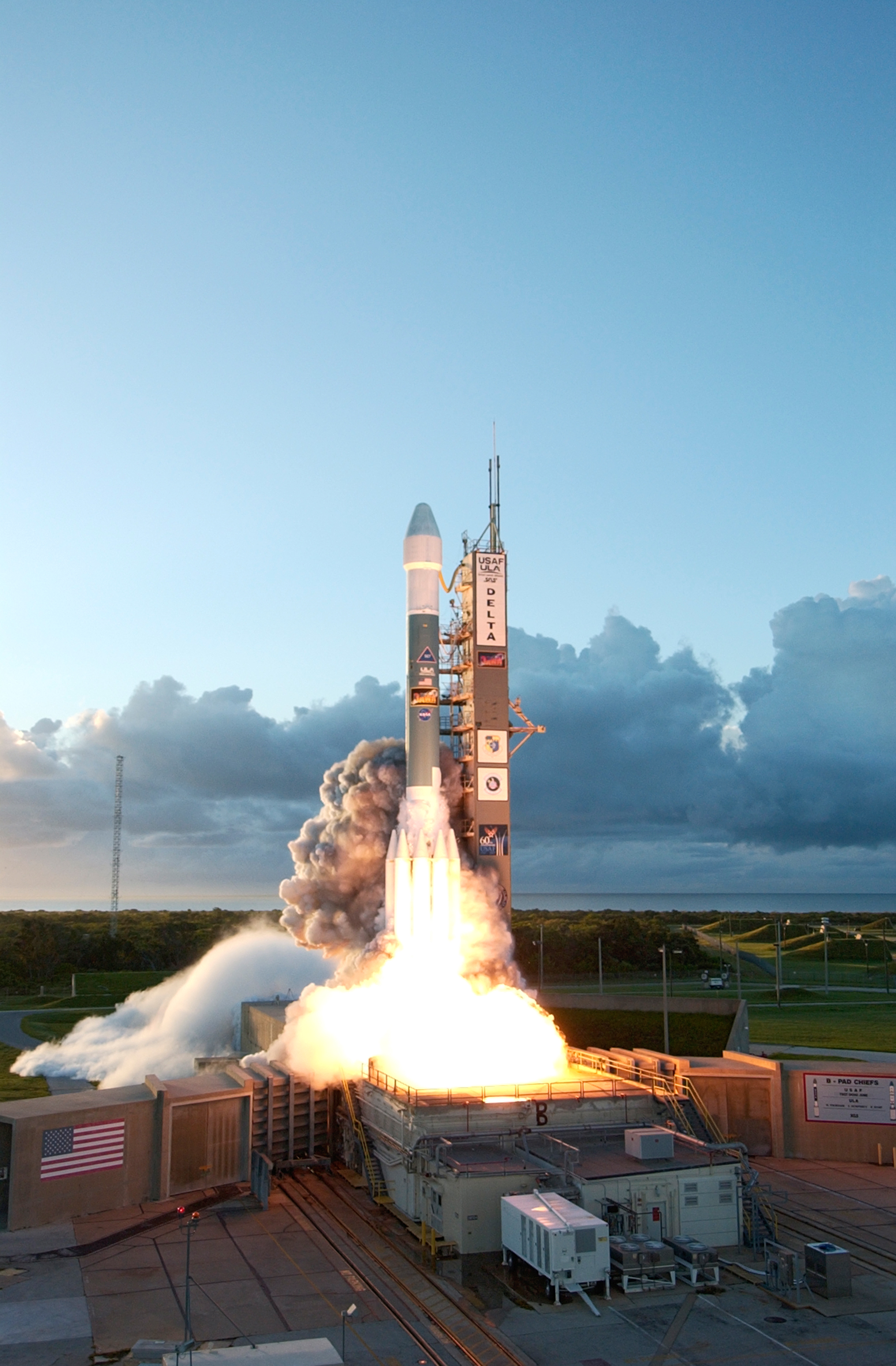

NASA / Tony Gray · NASA/KSC asset; NASA’s KSC-07PD-2590 catalog identifies the exact Delta II/Dawn launch and credits the photograph to NASA / Tony Gray. NASA’s current Images and Media Usage Guidelines generally permit factual or informational/editorial use with NASA attribution and without implying NASA endorsement. NASA insignia, launch-provider or other third-party marks, identifiable-person rights, and any commercial, promotional, merchandise, or protected-rights use remain separately restricted or clearance-sensitive; verify before such use. · Source
Follow this vehicle family

Future launches and major activity directly linked to this vehicle family.

Identity

Aliases
Delta 4Delta IV launch vehicle
Family Name
Delta
Full Name
Delta IV
Status
retired
Type
rocket
Variant Name
IV

Details

Description
Delta IV was a cryogenic expendable launch-vehicle family developed by Boeing and later produced and operated by United Launch Alliance. Its five configurations completed 45 flights from 2002 through 2024: 29 single-core Medium and Medium+ missions and 16 three-core Heavy missions. The inaugural Heavy demonstration experienced reduced launch performance; every subsequent Delta IV flight completed its mission successfully.
First Flight Year
2,002
Last Flight Year
2,024
Manufacturer
Operator
Parent Vehicle Family
Propulsion Configurations
  • Entries
    • Count
      1
      Placement
      core
      Propulsion System
      Role
      main
      Stage
      first
      Variant Notes
      Original RS-68 model documented for the baseline Medium Common Booster Core.
    • Count
      1
      Placement
      upper
      Propulsion System
      Role
      upper-stage
      Stage
      second
      Variant Notes
      RL10B-2 powered the 4 m Delta Cryogenic Second Stage.
    Name
    Delta IV Medium
    Notes
    Baseline single-Common-Booster-Core Delta IV with the 4 m cryogenic upper stage; this family-level record preserves the exact Medium subseries separately from the Medium+ and Heavy alternatives.
  • Entries
    • Count
      1
      Placement
      core
      Propulsion System
      Role
      main
      Stage
      first
      Variant Notes
      RS-68/RS-68A family identity retained because the subseries spans the Delta IV production era.
    • Count
      2
      Placement
      booster
      Propulsion System
      Role
      booster
      Stage
      first
      Variant Notes
      Two GEM-60 strap-on solid motors.
    • Count
      1
      Placement
      upper
      Propulsion System
      Role
      upper-stage
      Stage
      second
      Variant Notes
      RL10B-2 powered the 4 m Delta Cryogenic Second Stage.
    Name
    Delta IV Medium+ (4,2)
    Notes
    Single Common Booster Core, two GEM-60 strap-on motors, 4 m upper stage; kept separate from the other Medium+ and Heavy configurations.
  • Entries
    • Count
      1
      Placement
      core
      Propulsion System
      Role
      main
      Stage
      first
      Variant Notes
      RS-68/RS-68A family identity retained because the subseries spans the Delta IV production era.
    • Count
      2
      Placement
      booster
      Propulsion System
      Role
      booster
      Stage
      first
      Variant Notes
      Two GEM-60 strap-on solid motors.
    • Count
      1
      Placement
      upper
      Propulsion System
      Role
      upper-stage
      Stage
      second
      Variant Notes
      RL10B-2 powered the 5 m Delta Cryogenic Second Stage.
    Name
    Delta IV Medium+ (5,2)
    Notes
    Single Common Booster Core, two GEM-60 strap-on motors, 5 m upper stage; kept separate from the 4,2, 5,4, Medium, and Heavy alternatives.
  • Entries
    • Count
      1
      Placement
      core
      Propulsion System
      Role
      main
      Stage
      first
      Variant Notes
      RS-68/RS-68A family identity retained because the subseries spans the Delta IV production era.
    • Count
      4
      Placement
      booster
      Propulsion System
      Role
      booster
      Stage
      first
      Variant Notes
      Four GEM-60 strap-on solid motors.
    • Count
      1
      Placement
      upper
      Propulsion System
      Role
      upper-stage
      Stage
      second
      Variant Notes
      RL10B-2 powered the 5 m Delta Cryogenic Second Stage.
    Name
    Delta IV Medium+ (5,4)
    Notes
    Single Common Booster Core, four GEM-60 strap-on motors, 5 m upper stage; kept separate from the other Medium+ and Heavy configurations.
  • Entries
    • Count
      1
      Placement
      core
      Propulsion System
      Role
      main
      Stage
      first
      Variant Notes
      Central Common Booster Core; RS-68/RS-68A family retained rather than inventing a single model across the Heavy production era.
    • Count
      2
      Placement
      booster
      Propulsion System
      Role
      booster
      Stage
      first
      Variant Notes
      Two parallel Common Booster Cores; RS-68/RS-68A family retained across the Heavy era.
    • Count
      1
      Placement
      upper
      Propulsion System
      Role
      upper-stage
      Stage
      second
      Variant Notes
      RL10 family retained because historical Heavy vehicles span RL10B-2 and RL10C-2-1 upper-stage variants.
    Name
    Delta IV Heavy
    Notes
    Three Common Booster Cores and the larger cryogenic upper stage; family-level RS-68 and RL10 identities preserve the documented RS-68/RS-68A and RL10B-2/RL10C-2-1 historical variant span.
Rocket Specs
Reusability
expendable
Stages Count
2

Links

Official Url
https://www.ulalaunch.com/about/heritage-rockets/delta-iv
Wikipedia Url
https://en.wikipedia.org/wiki/Delta_IV
