H3 Launch Vehicle

H3 is Japan's active modular expendable launch-vehicle family, developed by JAXA with Mitsubishi Heavy Industries as prime contractor. Eight vehicles had flown through June 2026 across 22S, 24W, and 30S configurations; the 24L heavy configuration is assigned to future exploration missions.

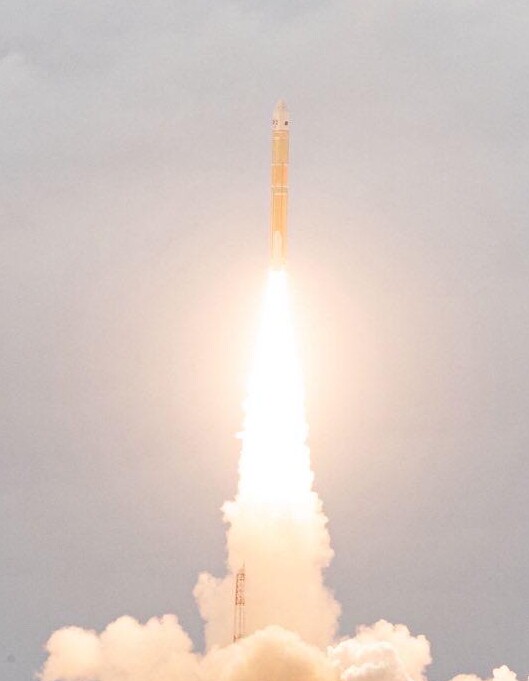

H3 Launch Vehicle
U.S. Air Force photo by Senior Airman Jacob Wood (AF991), 374th Airlift Wing · The exact stored asset is a 529x681 derivative crop with SHA-256 2fb3f849bf01688d06ca82f2e4e2a1cf87b4c55d43167afd245802abc1d51a4b; it byte-matches the Commons extraction of the official Space Force image for VIRIN 250202-F-AF991-1336 and DVIDS image 8853513. The official Space Force gallery identifies this photograph as public domain, cleared for release, and requests photographer credit. Reuse remains subject to current DoD visual-information limits: no implied government endorsement and separate restrictions for military marks, trademarks, privacy/publicity, or any third-party rights; this is not a blanket clearance for those elements. · Source
Follow this vehicle family

Future launches and major activity directly linked to this vehicle family.

Identity

Aliases
H3 Launch VehicleJAXA H3
Family Name
H3
Full Name
H3 Launch Vehicle
Status
active
Type
rocket

Details

Description
H3 is Japan's active modular expendable launch-vehicle family, developed by JAXA with Mitsubishi Heavy Industries as prime contractor. Eight vehicles had flown through June 2026 across 22S, 24W, and 30S configurations; the 24L heavy configuration is assigned to future exploration missions.
Dimensions
Diameter M
5.2
Height M
63
First Flight Year
2,023
Manufacturer
Operator
Propulsion Configurations
  • Entries
    • Count
      2
      Placement
      core
      Propulsion System
      Role
      main
      Stage
      first-stage
      Variant Notes
      Two exact LE-9 first-stage engines.
    • Count
      2
      Placement
      booster
      Propulsion System
      Role
      booster
      Stage
      first-stage
      Variant Notes
      Two exact SRB-3 solid rocket boosters.
    • Count
      1
      Placement
      upper
      Propulsion System
      Role
      upper-stage
      Stage
      second-stage
      Variant Notes
      One exact LE-5B-3 second-stage engine.
    Name
    H3-22S
    Notes
    Short-fairing H3 with two LE-9 first-stage engines, two SRB-3 strap-on boosters, and one LE-5B-3 second-stage engine.
  • Entries
    • Count
      2
      Placement
      core
      Propulsion System
      Role
      main
      Stage
      first-stage
      Variant Notes
      Two exact LE-9 first-stage engines.
    • Count
      4
      Placement
      booster
      Propulsion System
      Role
      booster
      Stage
      first-stage
      Variant Notes
      Four exact SRB-3 solid rocket boosters.
    • Count
      1
      Placement
      upper
      Propulsion System
      Role
      upper-stage
      Stage
      second-stage
      Variant Notes
      One exact LE-5B-3 second-stage engine.
    Name
    H3-24L
    Notes
    Long-fairing H3 heavy configuration with two LE-9 first-stage engines, four SRB-3 strap-on boosters, and one LE-5B-3 second-stage engine.
  • Entries
    • Count
      2
      Placement
      core
      Propulsion System
      Role
      main
      Stage
      first-stage
      Variant Notes
      Two exact LE-9 first-stage engines.
    • Count
      4
      Placement
      booster
      Propulsion System
      Role
      booster
      Stage
      first-stage
      Variant Notes
      Four exact SRB-3 solid rocket boosters.
    • Count
      1
      Placement
      upper
      Propulsion System
      Role
      upper-stage
      Stage
      second-stage
      Variant Notes
      One exact LE-5B-3 second-stage engine.
    Name
    H3-24W
    Notes
    Wide-fairing H3 cargo configuration with two LE-9 first-stage engines, four SRB-3 strap-on boosters, and one LE-5B-3 second-stage engine.
  • Entries
    • Count
      3
      Placement
      core
      Propulsion System
      Role
      main
      Stage
      first-stage
      Variant Notes
      Three exact LE-9 first-stage engines.
    • Count
      1
      Placement
      upper
      Propulsion System
      Role
      upper-stage
      Stage
      second-stage
      Variant Notes
      One exact LE-5B-3 second-stage engine.
    Name
    H3-30S
    Notes
    Short-fairing boosterless H3 configuration with three LE-9 first-stage engines and one LE-5B-3 second-stage engine.
Rocket Specs
Liftoff Mass Kg
574,000
Reusability
expendable
Stages Count
2

Links

Official Url
https://global.jaxa.jp/projects/rockets/h3/index.html
Wikipedia Url
https://en.wikipedia.org/wiki/H3_(rocket)
