Long March 5

Long March 5 is the heavy-lift member of the Chinese Long March launch-vehicle series. The cryogenic two-stage core is assisted by four liquid-fueled boosters and launches major lunar, planetary, and high-energy spacecraft from Wenchang. The exact designer, the China Academy of Launch Vehicle Technology, is a subsidiary of CASC.

Long March 5

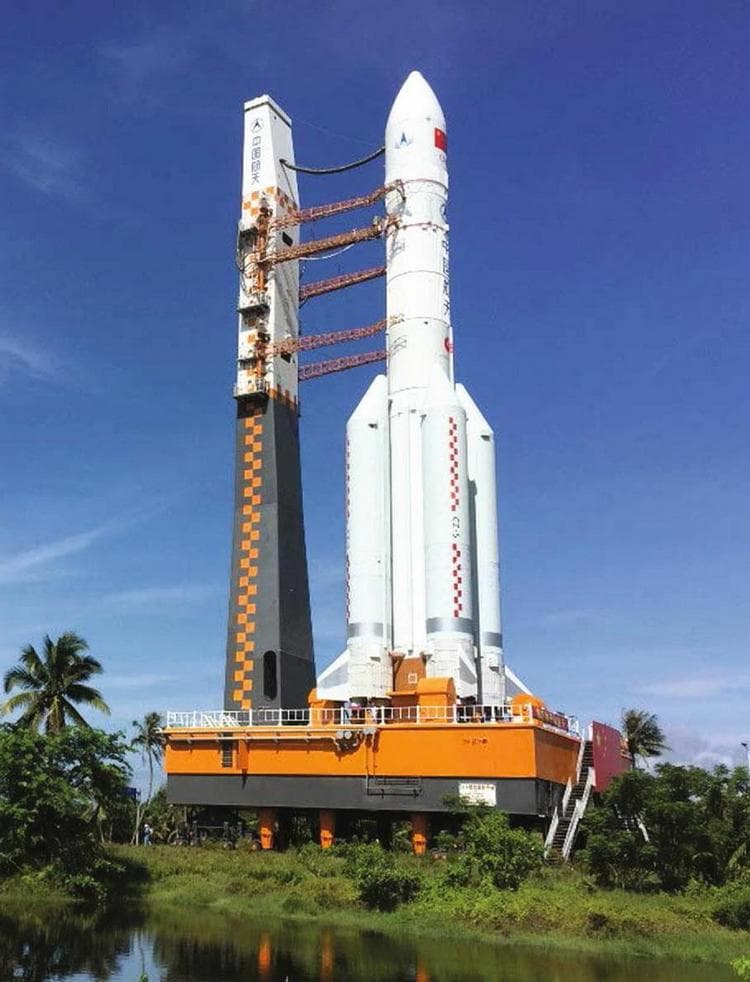

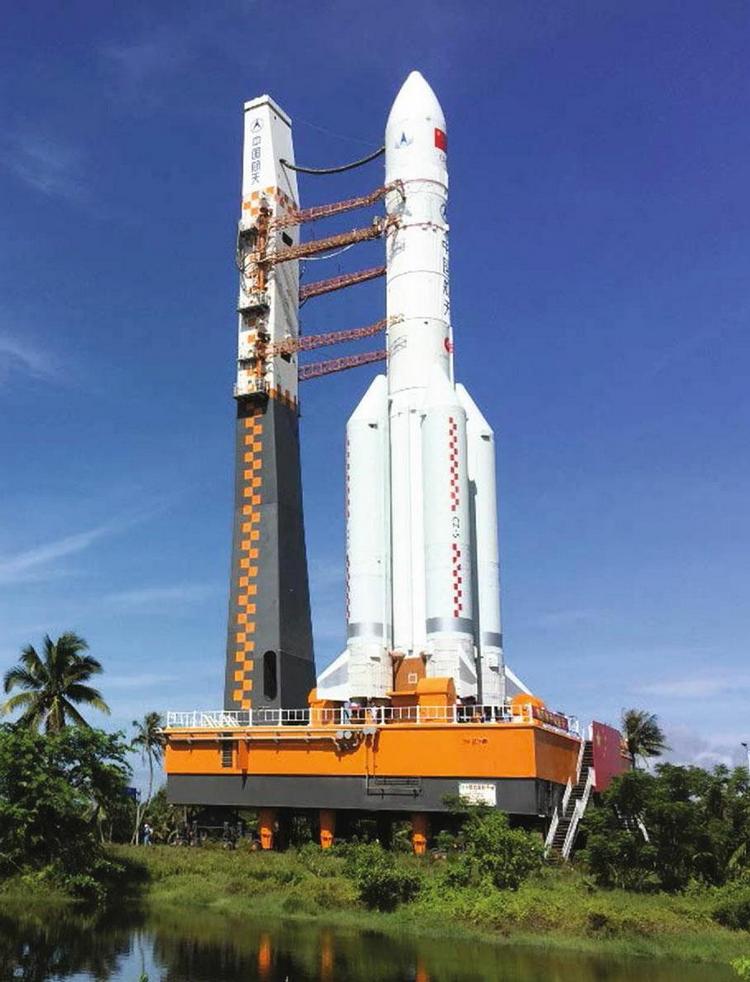

Xiaojun Wang / China Academy of Launch Vehicle Technology · Creative Commons Attribution 4.0 International; the exact Wikimedia Commons record identifies this byte-matched image as “Long March 5 rolling out at Wenchang Space Launch Site,” authored by Xiaojun Wang of the China Academy of Launch Vehicle Technology, and records the CC BY 4.0 licence. Sharing and adaptation are permitted with appropriate attribution, a licence link, and an indication of changes; do not imply endorsement. The Commons record’s source note identifies the image as cropped from the cited DOI source. · Source
Follow this vehicle family

Future launches and major activity directly linked to this vehicle family.

Identity

Aliases
Chang Zheng 5CZ-5LM-5长征五号Pang-WuFat Five
Family Name
Long March 5
Full Name
Long March 5
Status
active
Type
rocket

Details

Description
Long March 5 is the heavy-lift member of the Chinese Long March launch-vehicle series. The cryogenic two-stage core is assisted by four liquid-fueled boosters and launches major lunar, planetary, and high-energy spacecraft from Wenchang. The exact designer, the China Academy of Launch Vehicle Technology, is a subsidiary of CASC.
Dimensions
Diameter M
5
Height M
57
First Flight Year
2,016
Manufacturer
Parent Vehicle Family
Propulsion Configurations
  • Entries
    • Count
      2
      Placement
      core
      Propulsion System
      Role
      main
      Stage
      first-stage
      Variant Notes
      Two exact YF-77 hydrogen-oxygen engines on the 5 m core first stage.
    • Count
      8
      Placement
      booster
      Propulsion System
      Role
      booster
      Stage
      first-stage
      Variant Notes
      Four strap-on boosters, each with two exact YF-100 liquid-oxygen/kerosene engines.
    • Count
      2
      Placement
      upper
      Propulsion System
      Role
      upper-stage
      Stage
      second-stage
      Variant Notes
      Two exact YF-75D hydrogen-oxygen engines on the core second stage.
    Name
    Long March 5 basic configuration
    Notes
    Exact basic Long March 5 two-stage cryogenic configuration: two YF-77 core first-stage engines, eight YF-100 engines across four liquid strap-on boosters, and two YF-75D core second-stage engines. Long March 5B and other modular Long March branches remain intentionally separate.
Rocket Specs
Liftoff Mass Kg
870,000
Payload Capacity Kg
Gto
14,000
Leo
25,000
Reusability
expendable
Stages Count
2
Strap On Boosters Count
4
