Soyuz MS

Soyuz MS is the active Modified Systems generation of the Soyuz crew spacecraft. It retains the three-module service, orbital, and reentry architecture; NASA identifies the instrumentation/propulsion module's propulsion compartment as housing the system for orbital rendezvous and docking maneuvers and the deorbit burn, while its main propulsion and reaction-control system share nitrogen-tetroxide and unsymmetrical-dimethylhydrazine propellant tanks. ESA identifies Soyuz MS as the current version, with up to three astronauts, about 7.2 m length, 2.7 m diameter, and approximately 7 tonnes mass; ESA's 4 June 2018 Soyuz MS infographic specifies a 6,730 kg launch mass for that published configuration.

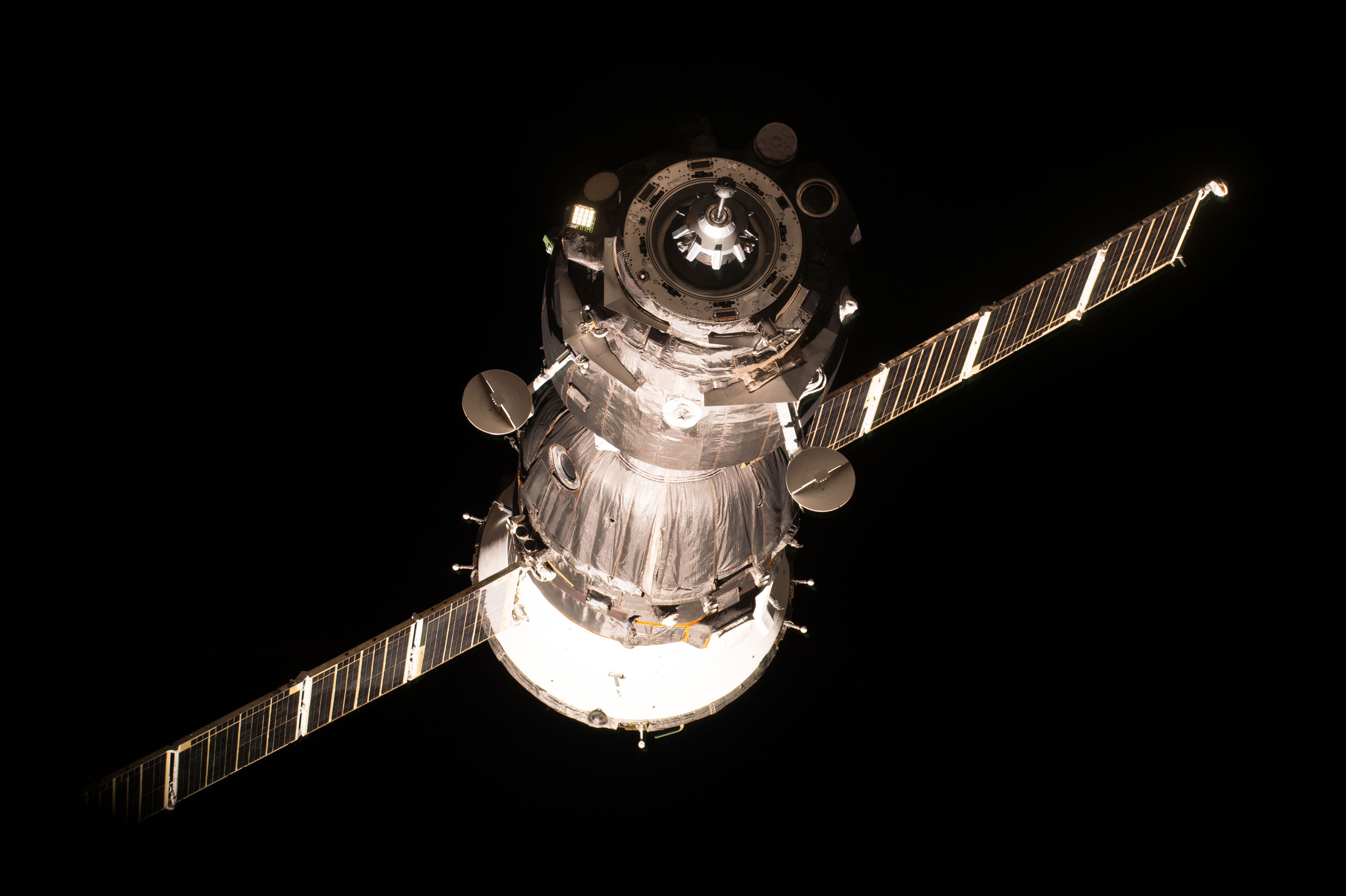

Soyuz MS
NASA / Jeff Williams · NASA asset; NASA Image Library item iss048e024550 identifies the exact byte-matched Soyuz MS-01 approach image and credits Jeff Williams. NASA’s current Images and Media Usage Guidelines generally permit factual or informational/editorial use with NASA attribution and without implying NASA endorsement. Commercial, promotional, merchandise, logo/insignia, identifiable-person, or other protected-rights use may require separate clearance; verify before such use. · Source
Follow this vehicle family

Future launches and major activity directly linked to this vehicle family.

Identity

Aliases
Soyuz Modified Systems
Family Name
Soyuz Spacecraft
Full Name
Soyuz MS
Roles
crewed_spacecraft
Status
active
Type
spacecraft
Variant Name
MS

Details

Description
Soyuz MS is the active Modified Systems generation of the Soyuz crew spacecraft. It retains the three-module service, orbital, and reentry architecture; NASA identifies the instrumentation/propulsion module's propulsion compartment as housing the system for orbital rendezvous and docking maneuvers and the deorbit burn, while its main propulsion and reaction-control system share nitrogen-tetroxide and unsymmetrical-dimethylhydrazine propellant tanks. ESA identifies Soyuz MS as the current version, with up to three astronauts, about 7.2 m length, 2.7 m diameter, and approximately 7 tonnes mass; ESA's 4 June 2018 Soyuz MS infographic specifies a 6,730 kg launch mass for that published configuration.
Dimensions
Diameter
…
Length
…
First Flight Year
2,016
Manufacturer
Operator
Parent Vehicle Family
Propulsion Configurations
  • Entries
    • Count
      1
      Placement
      spacecraft
      Propulsion System
      Role
      main
      Stage
      service-module
      Variant Notes
      One integrated Soyuz MS spacecraft propulsion system; count denotes the system boundary rather than an individual engine or thruster count.
    Name
    Soyuz MS integrated propulsion installation
    Notes
    The Soyuz MS service module contains one integrated propulsion system supporting orbital maneuvers, rendezvous and docking, deorbit, and attitude control. NASA identifies shared nitrogen-tetroxide and unsymmetrical-dimethylhydrazine tanks for main propulsion and reaction control. Launch-escape and Soyuz launch-vehicle propulsion remain outside this spacecraft installation.
Spacecraft Specs
Launch Mass
…
Reusability
expendable

Links

Official Url
https://www.esa.int/Science_Exploration/Human_and_Robotic_Exploration/The_Russian_Soyuz_spacecraft
