Vulcan Centaur

Vulcan Centaur is the modular expendable launch-vehicle family developed and operated by United Launch Alliance. A methane-fueled core with two BE-4 engines is paired with the Centaur V upper stage and zero to six GEM 63XL solid boosters; configurations serve low Earth orbit, geostationary, lunar, escape, and national-security missions.

Vulcan Centaur

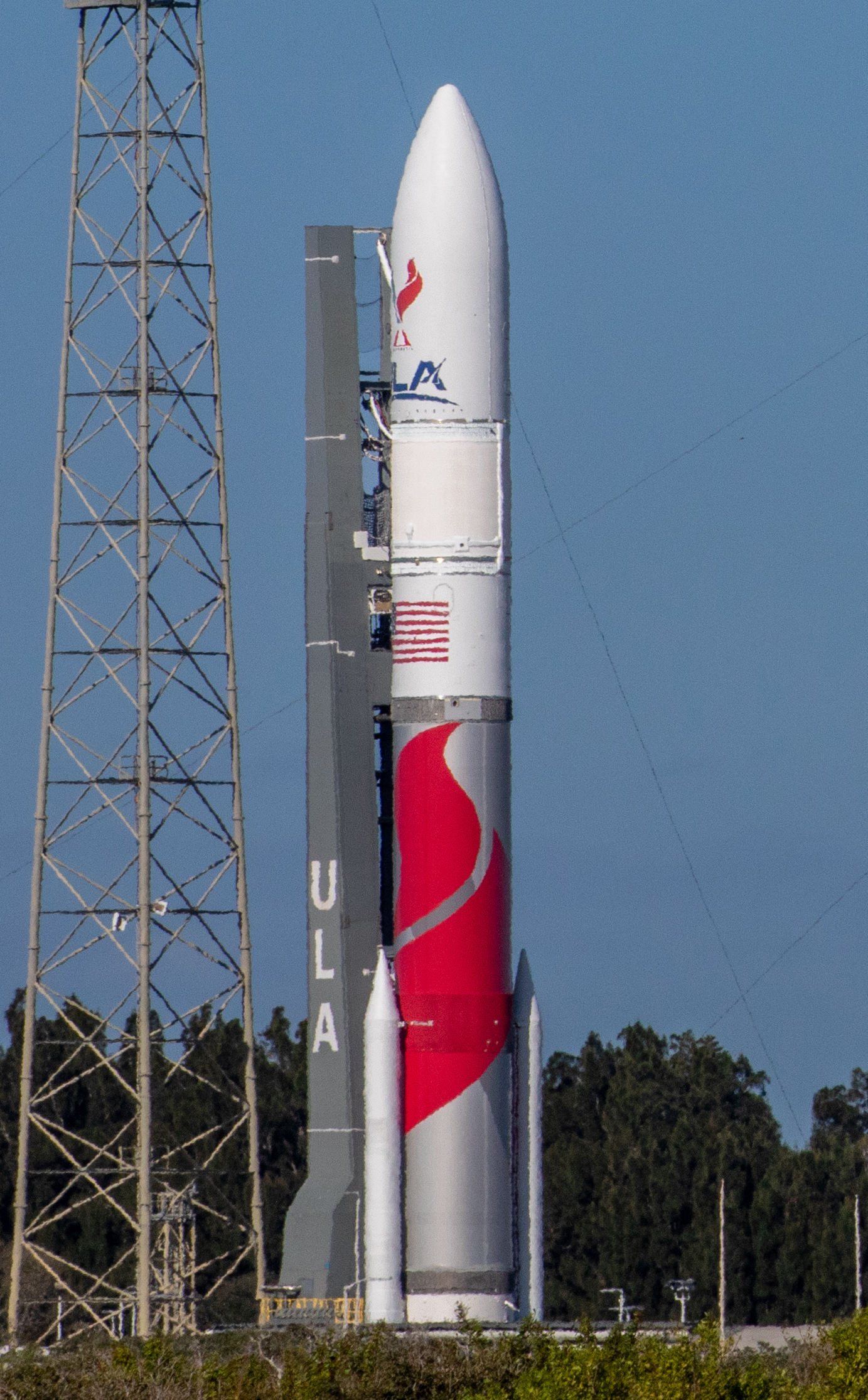

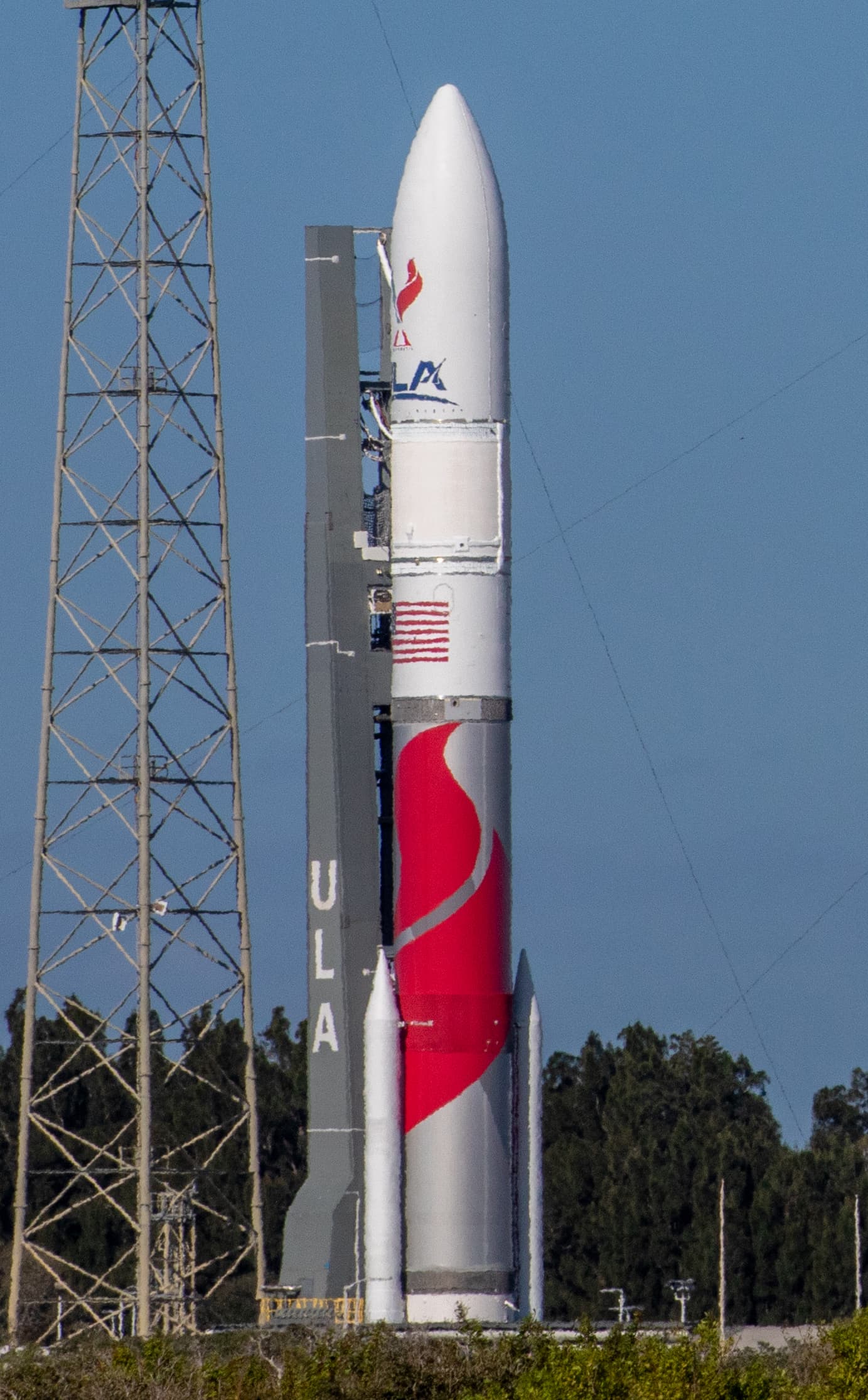

NASA/Ben Smegelsky · Stored/public JPEG is byte-identical to the Wikimedia Commons crop of NASA's exact KSC-20240105-PH-JBS01_0024 original (1383x2230, SHA-256 3649a91a84383edd70e89b7294f2b5436b5f86f3c1bf2a8832a60c8b5b25d1a3). The Commons file page identifies the NASA Kennedy Flickr original https://www.flickr.com/photos/nasakennedy/53444731128/in/photostream/, NASA/Ben Smegelsky, and a public-domain U.S. federal-work basis; NASA Images API independently identifies KSC-20240105-PH-JBS01_0024 as the Vulcan/Peregrine rollout photograph. NASA current Images and Media Usage Guidelines permit factual or informational use of NASA content with NASA acknowledged where no third-party rights are indicated, while NASA logos and identifiers remain protected and use must not imply endorsement: https://www.nasa.gov/nasa-brand-center/images-and-media/. This is an asset-level, conservative factual/editorial reuse basis with NASA/Ben Smegelsky attribution, not a blanket license for ULA or Astrobotic branding, promotional use, merchandise, or endorsement. · Source
Follow this vehicle family

Future launches and major activity directly linked to this vehicle family.

Identity

Aliases
Vulcan CentaurULA VulcanVulcan launch system
Family Name
Vulcan
Full Name
Vulcan Centaur
Status
active
Type
rocket

Details

Description
Vulcan Centaur is the modular expendable launch-vehicle family developed and operated by United Launch Alliance. A methane-fueled core with two BE-4 engines is paired with the Centaur V upper stage and zero to six GEM 63XL solid boosters; configurations serve low Earth orbit, geostationary, lunar, escape, and national-security missions.
Dimensions
Diameter M
5.4
Height M
61.6
First Flight Year
2,024
Manufacturer
Operator
Propulsion Configurations
  • Entries
    • Count
      2
      Placement
      core
      Propulsion System
      Role
      main
    • Count
      2
      Placement
      upper
      Propulsion System
      Role
      upper-stage
    Name
    Vulcan Centaur zero-GEM configuration
    Notes
    ULA documents Vulcan's standard zero-solid configuration: two BE-4 core engines and two RL10C upper-stage engines, with no GEM 63XL solid boosters.
  • Entries
    • Count
      2
      Placement
      core
      Propulsion System
      Role
      main
    • Count
      2
      Placement
      booster
      Propulsion System
      Role
      booster
    • Count
      2
      Placement
      upper
      Propulsion System
      Role
      upper-stage
    Name
    Vulcan Centaur two-GEM 63XL configuration
    Notes
    ULA documents a standard two-solid Vulcan offering: two BE-4 core engines, two GEM 63XL solid boosters, and two RL10C upper-stage engines.
  • Entries
    • Count
      2
      Placement
      core
      Propulsion System
      Role
      main
    • Count
      4
      Placement
      booster
      Propulsion System
      Role
      booster
    • Count
      2
      Placement
      upper
      Propulsion System
      Role
      upper-stage
    Name
    Vulcan Centaur four-GEM 63XL configuration
    Notes
    ULA documents a standard four-solid Vulcan offering: two BE-4 core engines, four GEM 63XL solid boosters, and two RL10C upper-stage engines.
  • Entries
    • Count
      2
      Placement
      core
      Propulsion System
      Role
      main
    • Count
      6
      Placement
      booster
      Propulsion System
      Role
      booster
    • Count
      2
      Placement
      upper
      Propulsion System
      Role
      upper-stage
    Name
    Vulcan Centaur six-GEM 63XL configuration
    Notes
    ULA describes Vulcan Centaur as supporting zero to six GEM 63XL solid boosters; this exact six-booster option preserves the existing baseline configuration.
Rocket Specs
Reusability
expendable
Stages Count
2

Links

Official Url
https://www.ulalaunch.com/rockets/vulcan-centaur
Wikipedia Url
https://en.wikipedia.org/wiki/Vulcan_Centaur
